Airmar B117 Traditional/CW Thru‑Hull 50/200kHz, 600W, Transducer, 9-Pin, DT f/Simrad, Lowrance & B&G

B117 Traditional/CW Thru-Hull 50/200kHz, 600W, Transducer, 9-Pin, DT for Simrad, Lowrance & B & G

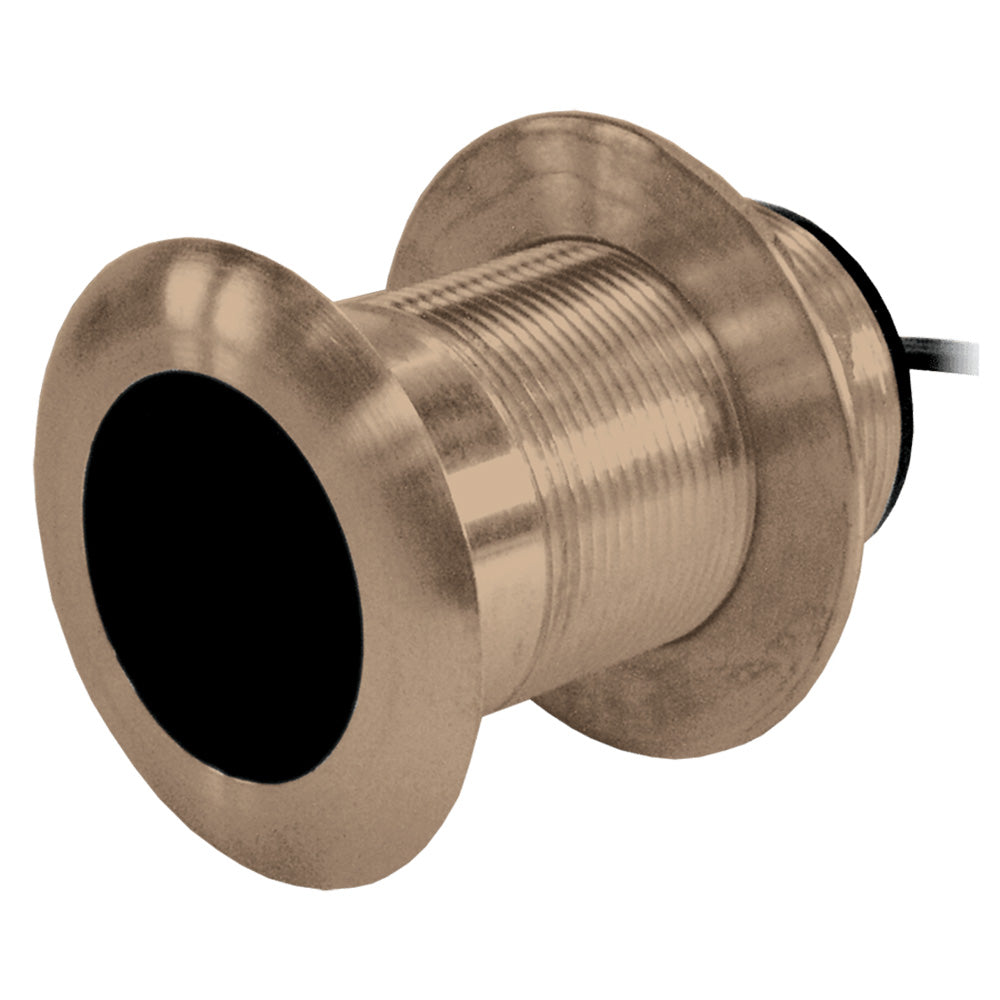

The B117 features a 50/200 kHz, dual-frequency, single, ceramic element in a low-profile bronze housing. The nearly-flush design minimizes drag with only 5 mm (3/16") extending outside of the hull.

Features:

• Depth only or depth and temperature
• 600 W
• Dual-frequency element: 50 kHz with a wide 45° beamwidth for performance to 353 m (1,200'), 200 kHz with a 12° beamwidth for performance to 206 m (700')
• Right-angle cable exit saves space and protects the transducer if stepped on
• Included rubber washer allows tightening of the hull nut to irregular hull surfaces
• Low-profile, bronze housing has minimal drag
• Plastic P319 and stainless steel SS60 models are also available to accommodate all hull materials and deadrise angles

Specifications:

• Weight: 0.9 kg (2.0 lb.)
• Recommended Boat Length: Up to 8 m (25')
• Hull Material: Fiberglass or wood
• Hull Deadrise: Best performance through 7°. Can accommodate up to 12°.
• Acoustic Window: Urethane
• Hole Diameter: 51 mm (2")

SKU: NVN-97557
MPN: B117-DT-9N
UPC:
