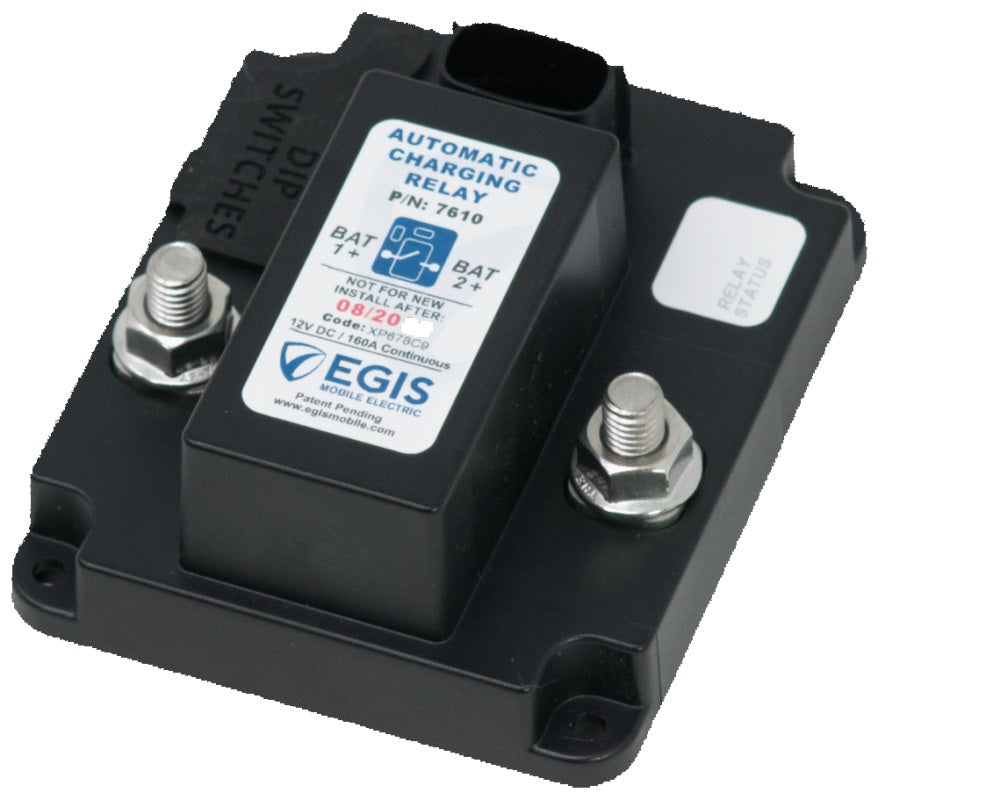

EGIS 7610 Programable ACR 160A / 24v

EGIS 7610 Programable ACR 160A / 24v

Model: 7610-24

• TOP SIDE DIP SWITCHES: Accessible after mounting, for programming voltage settings and determining active features. Protected by self-retained cover.
• STAINLESS STEEL SELF-LOCKING HARDWARE: 100% Non-ferrous corrosion resistant materials. All attachment screws and nuts are self-locking.
• INTEGRAL I/O CONNECTOR: Sealed Molex MX-150 connector eliminates the susceptibility to corrosion and vibrating loose of 1/4"" quick connect terminals on competitive products.
• CONNECTION OPTIONS: Comes standard with Deutsch DT/AT style connector harness. Provides three connection options (MX-150, DT/AT, Wire Leads)
• EASY INTEGRATION WITH RT FUSE BLOCKS (24 HR CIRCUITS): Optional EasyLink bus bars reduces space and cost to connect TH Series Relays with RT Series Fuse Blocks.
• LED DIAGNOSTICS: Provides indication of pending relay ON/OFF, under voltage, over voltage/temp, start isolation/assist, and Output on/off status.

Ultra-Low Power Draw Compare to typical ACRs (7-10 mA) vs 7610 ACR @ 1.3 mA, will not deplete batteries even after extended electrical system downtime.

Simple & Robust Installation: Integrated sealed plug eliminates corrosion, includes Deutsch/Amphenol DTM connector harness

Start Assist input option to ensure maximum cranking amps available by allowing manually connecting of batteries via remote switch.

Bullet-proof Construction: Sealed unit, stainless steel hardware, high temperature materials allow mounting anywhere. Integrated thermal overload shutdown protection.

Additional Low Amp Output can be used to report device status remotely, or drive a secondary relay for charge to a battery bank without a charge source (see examples)

Specifications

CONTINUOUS CURRENT (AMPS)	160
Voltage Range (v dc)	16 - 36
Off-State Current Draw (mA)	1.3
Intermittent Current (amps)	240
ACR closing voltage range (v dc)	25.8-27.2
ACR opening VOLTAGE RANGE (V DC)	24.2-25.6

SKU: NVN-1004304
MPN: 7610-24
UPC: 850035199947
