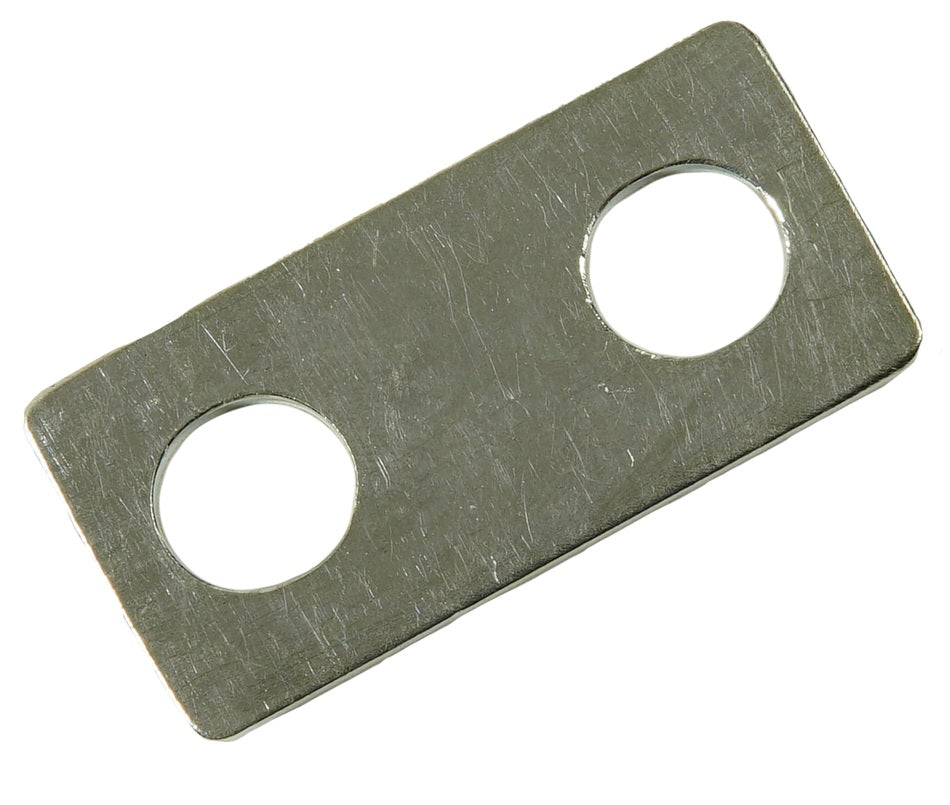

EGIS XD Relay Link Busbar

EGIS XD Relay Link Busbar

Model: 8790

Tin Plated Copper to ensure reliable circuit connectivity and anti-corrosive feature keep it last long term.

Link Together XD Single, Dual And Triple XD Relays to each other in multiple configurations and even to our 8700 Mechanical Disconnect. Linking Relays together creates compact installations and allows for robust circuit switch and battery management.

Specifications

CONTINUOUS CURRENT (AMPS)	500
MAX VOLTAGE (VDC)	72
MATERIAL	Tin Plated Copper
SIZE	47.8mm L x 22.8mm W
THICKNESS	2.8mm (1/8in)
Terminal Stud Hole Size	10.5mm (3/8in)

SKU: NVN-1004300
MPN: 8790
UPC: 850035199879
