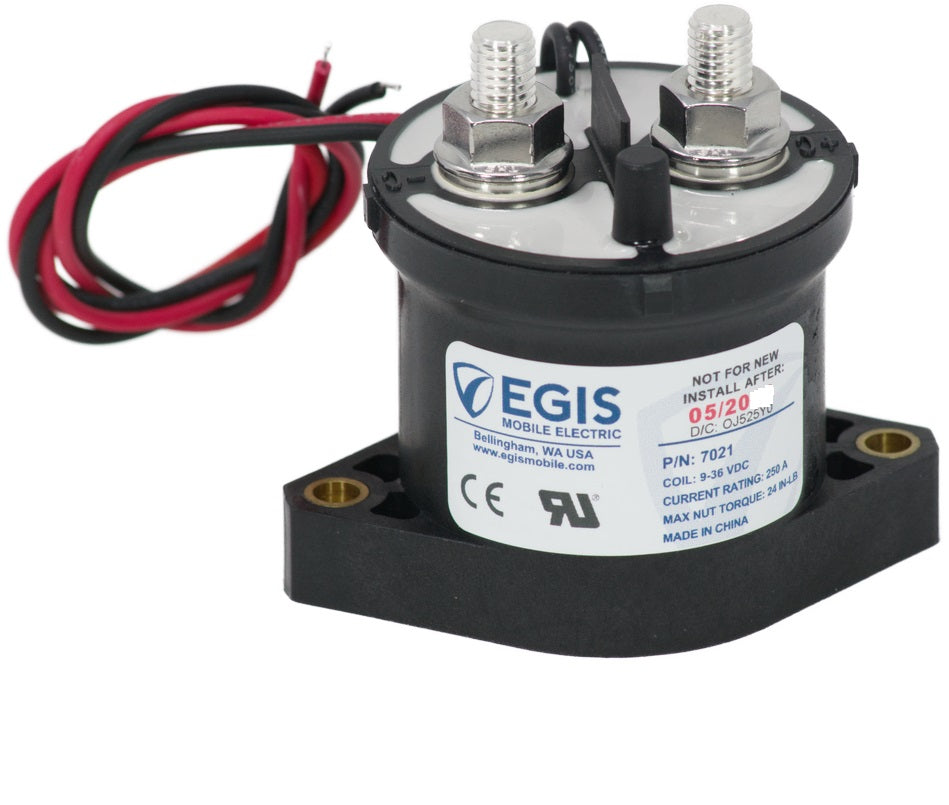

EGIS 250A 12/24v Contactor

EGIS 250A 12/24v Contactor

Model: 7021

• Sealed Enclosure: Hermetically sealed against dust and moisture penetration. High temp rated for all installation locations.
• 18-8 Stainless Steel Self Locking Hardware: Resists corrosion and ensure long term connection reliability with premium hardware.
• High Interrupt Capability: Safely able to open in a locked starter situation up to 1,500 A @14 Vdc.
• Easy Mounting: Reinforced mounting holes provide secure installation and easy attachment for the installer.

Ignition Protected safe for installation in closed compartments with potential explosive gases

High Electrical Switching Endurance delivers 6,000 cycles at 250A / 450V, 100,000 cycles at 250A / 14V

High Interrupt Current Capability safely able to open in a locked starter situation (up to 1,500 A @ 14 Vdc)

Bullet-proof Construction: Sealed device, high temp materials for engine compartment applications, and stainless self-locking hardware.

4 Year Industry Leading Warranty

Specifications

CONTINUOUS CURRENT (AMPS)	250/500
OPERATION CONTROL VOLTAGE	9-36 Vdc
INGRESS PROTECTION	IP67 / IP69K
IGNITION PROTECTION	ISO-8846 / UL 1500
MIN OPERATE TEMP (DEG C)	-40
MAX OPERATE TEMP (DEG C)	85

SKU: NVN-1004296
MPN: 7021
UPC: 850035199671
