Airmar

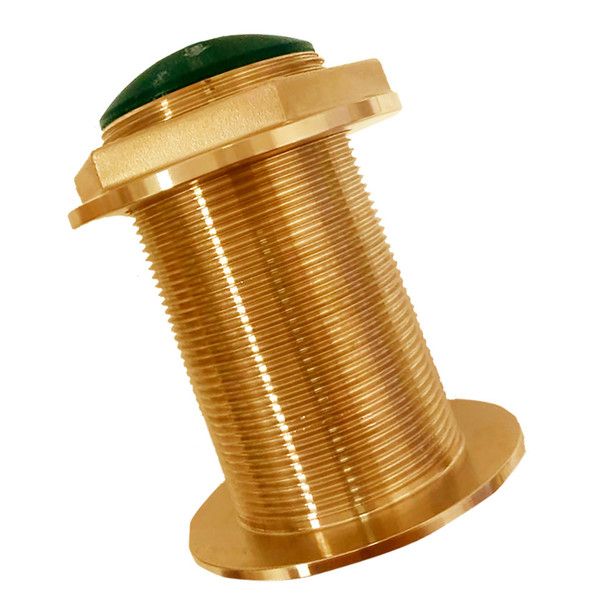

Echonautics BT70D600CW-18 600w 50/200kHz 18d Tilted Element Bronze TH
SKU: 1003767 · UPC: 010407340258 · MPN: BT70D600CW-18
★★★★★
4.7 · 0 reviews
Authorized dealer28% off
$209.99
$295.00Save $85.01
or 4 payments of $52.49 with Affirm
Low stock — 2 left — Ships today
SAME-DAY SHIPPING · 14:23 EST
Order in time, ships today
Ships from your nearest warehouse. UPS Ground 2–4 business days.
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$209.99
02 · Overview
Echonautics BT70D600CW-18 600w 50/200kHz 18d Tilted Element Bronze TH — Product description
Echonautics BT70D600 50/200kHz Bronze Thru-Hull with 18 degree Tilted Element
Model: BT70D600-18Get target detail in shallow water and good deep-water botoom tracking.
this series is designed to minimiz drag and to perform at high speeds.
Specifications| Function | Depth and temperature |
| Frequency | 50/200kHz |
| Mount type | Thru-hull |
| Tilt/deadrise | 18° tilte for 16° to 24° hull deadrises |
| Material | Bronze |
| RMS Power | 600 watts |
| Beamwidth | 42° / 11° -3db |
| Depth | Max@50kHz = 1200ft Max at 200kHz = 700ft |
| Temp sensor | NTC |
| Acoustic window | Urethane |
| Weight | 54oz |
| Cable length | 27ft |
| Hole diameter | 2.38"" |
SKU: NVN-1003767
MPN: BT70D600CW-18
UPC: 010407340258
