Airmar

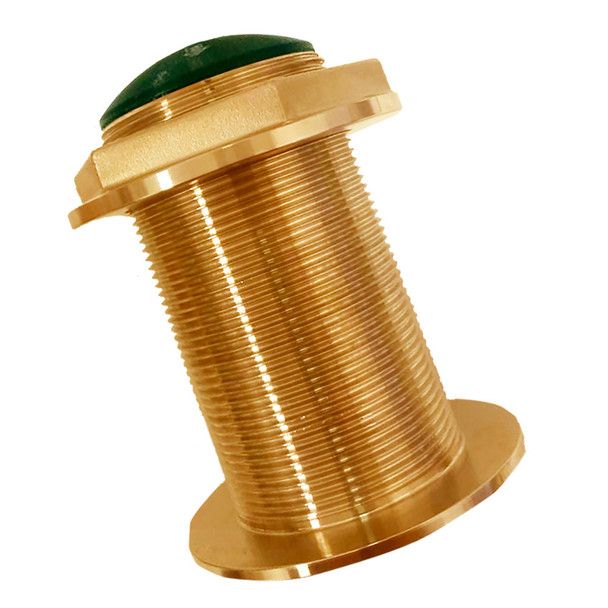

Echonautics BT70D600CW-12 600w 50/200kHz 12d Tilted Element Bronze TH
SKU: 1003766 · UPC: 010407340241 · MPN: BT70D600CW-12
★★★★★
4.7 · 0 reviews
Authorized dealer28% off
$209.99
$295.00Save $85.01
or 4 payments of $52.49 with Affirm
Out of stock
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$209.99
02 · Overview
Echonautics BT70D600CW-12 600w 50/200kHz 12d Tilted Element Bronze TH — Product description
Echonautics BT70D600 50/200kHz Bronze Thru-Hull with 12 degree Tilted Element
Model: BT70D600-12Get target detail in shallow water and good deep-water botoom tracking.
this series is designed to minimiz drag and to perform at high speeds.
Specifications| Function | Depth and temperature |
| Frequency | 50/200kHz |
| Mount type | Thru-hull |
| Tilt/deadrise | 12° tilte for 8° to 15° hull deadrises |
| Material | Bronze |
| RMS Power | 600 watts |
| Beamwidth | 42° / 11° -3db |
| Depth | Max@50kHz = 1200ft Max at 200kHz = 700ft |
| Temp sensor | NTC |
| Acoustic window | Urethane |
| Weight | 54oz |
| Cable length | 27ft |
| Hole diameter | 2.38"" |
SKU: NVN-1003766
MPN: BT70D600CW-12
UPC: 010407340241
03 · The numbers
Technical specifications
| Brand | Airmar |
| Model | Echonautics BT70D600CW-12 600w 50/200kHz 12d Tilted Element Bronze TH |
| SKU / MFR# | 1003766 |
Set product metafields under specs.* to populate this table.
