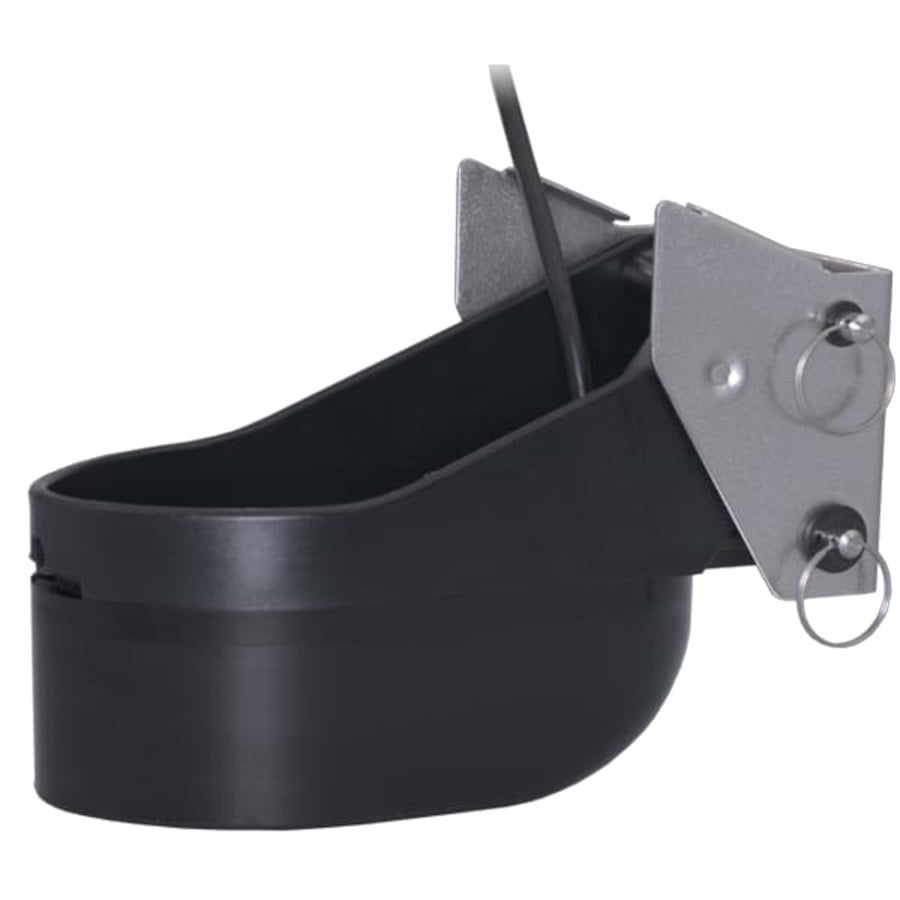

AIRMAR TM265C-LM 1kW Low Medium CHIRP With Mix-N-Match Plug
AIRMAR TM265C-LM 1kW Low Medium CHIRP With Mix-N-Match Plug — Product description
1 kW
The TM265LM, Chirp-ready transom mount is a perfect mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.
The low-frequency band of 42 to 65 kHz provides deep-water performance down to 914 m (3000'). It is a good choice when scouting an area or fishing in deeper depths. The medium frequency from 85 to 135 kHz is excellent for identifying targets suspended close to the bottom, on structure, and within the water column.
Airmar TM265C Low/Medium CHIRP Transom Mount Transducer with Mix-N-Match Plug
Model: TM265C-LM-MM- Depth and fast-response water-temperature sensing
- 1 kW of power for great deep to mid-depth performance
- Low frequency: 42 to 65 kHz, 25° to 16° port-starboard beamwidt, Maximum depth of 914 m (3000')
- Medium frequency: 85 to 135 kHz, 16° to 11° beamwidth, Maximum depth of 457 m (1500')
- 73 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths
- Transom mount stainless steel bracket for installation on boats of all propulsion types
- SEALCAST™, seamless, urethane housing for long life in the water
- Patented Xducer ID® technology
Rely on Airmar's new broadband transducers for the ultimate fishing mission! Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town. Traditional marine fish finders operate at discreet frequencies such as 50 kHz and 200 kHz, use relatively short-duration pulses, and use narrowband sonar transducers. In contrast, Chirp uses a precise sweep pattern of many frequencies within a long-duration transmit pulse from a broadband transducer, so the equivalent sound energy transmitted into the water is 10 to 1,000 times greater than a conventional marine fish finder.
Specifically designed for small boats (25'-40'), the TM265LH Chirps across the following bandwidths:
LH Model - Low Frequency 42-65 kHz/High Frequency 130-210 kHz
Specifications| Low frequency | 42-65 kHz (25° to 16° beamwidth) |
| Medium Frequency | 85-135 kHz (16°-11°) |
| Cable-Length | 10 m (33') |
| Housing | Urethane/Stainless Bracket |
| Mounting Style | Transom |
| Power Rating | 1 kW |
| Single or Dual Frequency | CHIRP-Ready Dual-Band |
| Transducer Functions | Depth, Temperature |
| Transom Angle | 3° to 21° |
What's in the Box:
- TM265C-LM-MM
- Transom Mount Hardware
- Depth and fast-response water-temperature sensing
- 1 kW of power for great deep to mid-depth performance
- Low frequency: 42 to 65 kHz
- 25° to 16° port-starboard beamwidth
- Maximum depth of 914 m (3000')
- Medium frequency: 85 to 135 kHz
- 16° to 11° beamwidth
- Maximum depth of 457 m (1500')
- 73 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths
- Transom mount stainless steel bracket for installation on boats of all propulsion types
- SEALCAST, seamless, urethane housing for long life in the water
- Also available as in-hull (M265LM), cavity/welded-tank (CM265LM), thru-hull (B265LM), and pocket (PM265LM) mounts
- Patented Xducer ID technology
SKU: NVN-1003190
MPN: TM265C-LM-MM
UPC:
Technical specifications
| Brand | Airmar |
| Model | AIRMAR TM265C-LM 1kW Low Medium CHIRP With Mix-N-Match Plug |
| SKU / MFR# | 1003190 |
