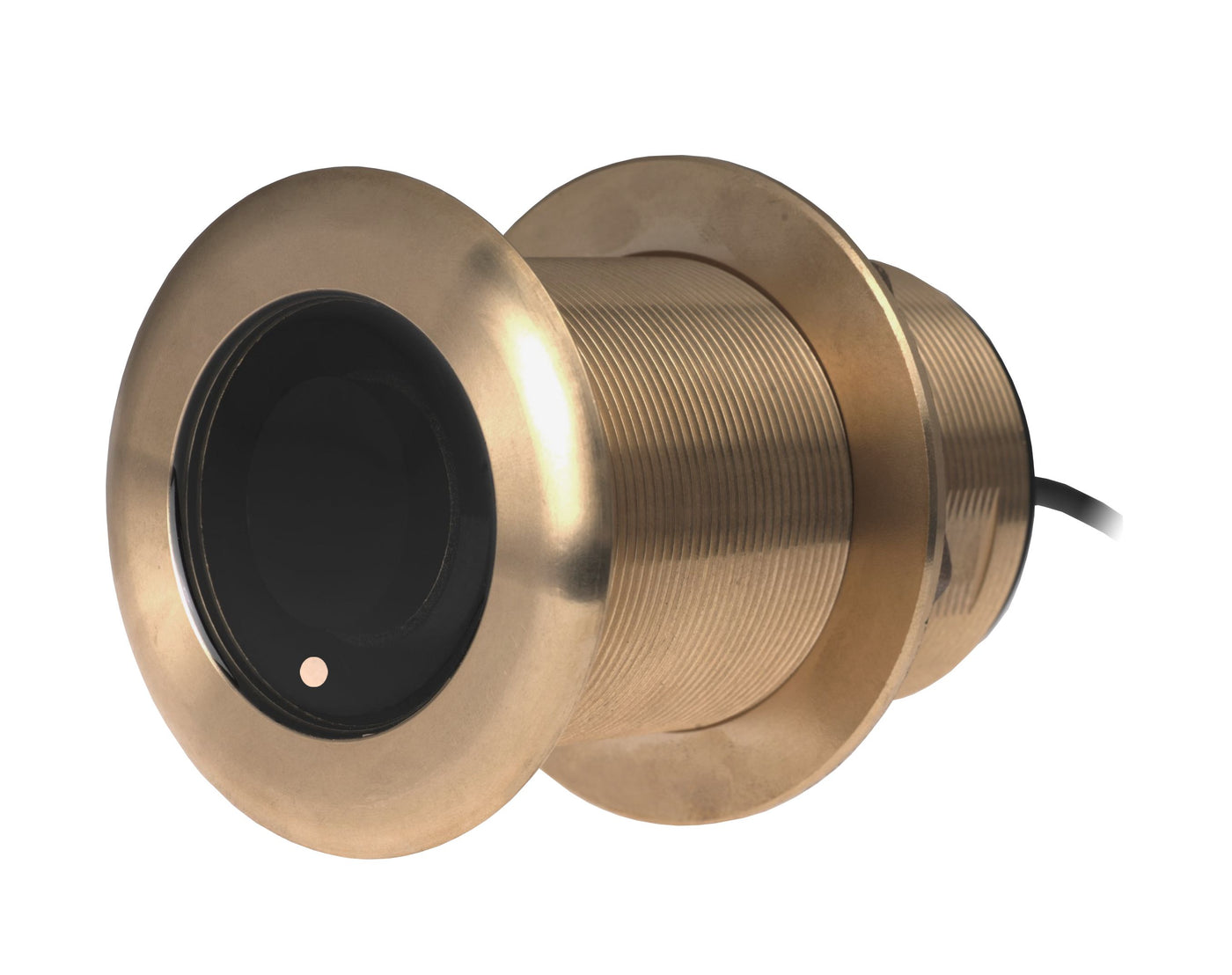

Airmar B75C-12-L 12d Tilt Low CHIRP Furuno 10-pin Cable
Airmar B75C-12-L 12d Tilt Low CHIRP Furuno 10-pin Cable — Product description
300 W
Airmar's low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low-frequency band, operating between 40 and 75 kHz, is a deep-water performer, providing excellent coverage and tracking. The B75L transducer delivers up to 35 kHz of total bandwidth in just one installation.
This Tilted Element transducer has the ceramic element fixed at either a 12° or 0° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.
The B75L is available in two Tilted Element models:
- Fixed 12° tilted version for 0 to 24° hull deadrise angles
- Fixed 0° tilted version for 0 to 7° hull deadrise angles
Airmar B75C-12-L 12d Tilt Low CHIRP with Furuno 10-Pin Mix-N-Match Cable
Model: B75C-12-L-10F- Depth & fast-response water-temperature sensor
- Low—CHIRPS from 40 kHz to 75 kHz, 32° to 21° beamwidth
- 300 W of power with a maximum depth of 353 m (1200')
- Great deep-water performance
- Low-profile, thru-hull housing provides good display resolution at speed when installed properly
- Recommended for stepped, planing, or displacement hull
- Bronze housing for use in a fiberglass or wood hull
Airmar’s low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low-frequency band, operating between 40 and 75 kHz, is a deep-water performer, providing excellent coverage and tracking. The B75L transducer delivers up to 35 kHz of total bandwidth in just one installation.
When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.
Provides greater depth range, wider beamwidth, and ultimately more coverage under the boat
Chirp signal processing technology used with AIRMAR broadband, Chirp-ready transducers provides more detail at greater depths and is less susceptible to noise
Great for operating at high boat speeds
Specifications| Cable-Length | 9 m (30') |
| Deadrise Range | 8 to 16° |
| Frequency Band | Low |
| Low Frequency | 40-75 kHz |
| Low Frequency Beamwidth | 32°-21° |
| Max Depth | 366 m (1200') |
| Power Rating | 300 W |
| Retractable housing | No |
| Single or Dual Frequency | CHIRP-Ready Single-Band |
| Transducer Functions | Depth, Temperature |
What's in the Box:
- B75C-12-L-MM
- MMC-10FL Cable
- Depth and fast-response water-temperature sensing
- 300 W of power with a maximum depth of 353 m (1200')
- Low frequency: 40 to 75 kHz
- 32° to 21° beamwidth
- Great deep-water performance
- Low-profile, thru-hull housing provides good display resolution at speed when installed properly
- Recommended for stepped, planing, or displacement hull
- Bronze housing for use in a fiberglass or wood hull
- Also available in a stainless steel housing (SS75L) for use with all hull materials
- Patented Xducer ID technology
SKU: NVN-1003137
MPN: B75C-12-L-10F
UPC:
Technical specifications
| Brand | Airmar |
| Model | Airmar B75C-12-L 12d Tilt Low CHIRP Furuno 10-pin Cable |
| SKU / MFR# | 1003137 |
Set product metafields under specs.* to populate this table.
