Airmar B265C-LH Bronze TH Low/High CHIRP With Bare Wire Mix-N-Match
Airmar B265C-LH Bronze TH Low/High CHIRP With Bare Wire Mix-N-Match — Product description
1 kW
We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna—60 kHz, squid—133 kHz, and cod—175 kHz. The B265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.
Airmar's B265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10° to 6°, beam—perfect for picking apart structure and pinpointing tight-holding fish in structure.
The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

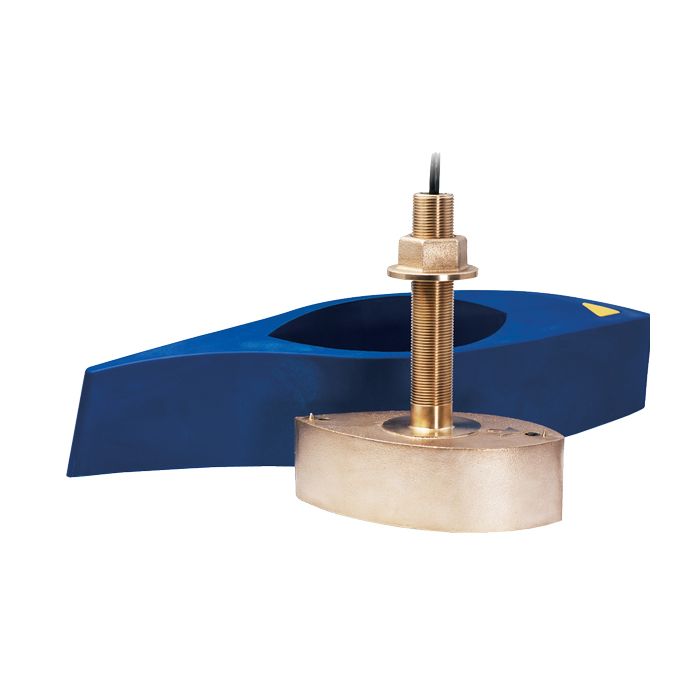

Airmar B265C-LH Bronze Thru Hull with Bare Wire Mix-N-Match Cable
Model: B265LH-0- Depth and fast-response water-temperature sensing
- 1 kW of power for great deep-water performance
- Low frequency: 42 to 65 kHz, 25° to 16° beamwidth, Maximum depth of 914 m (3000')
- High frequency: 130 to 210 kHz, 10° to 6° beamwidth, Maximum depth of 304 m (1000')
- 103 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
- Bronze housing with High-performance Fairing for optimal high-speed performance
- Patented Xducer ID® technology
We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna—60 kHz, squid—133 kHz, and cod—175 kHz. The B265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.
Airmar’s B265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10° to 6°, beam—perfect for picking apart structure and pinpointing tight-holding fish in structure.
The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).
Specifications| Cable-Length | 9 m (30') |
| Frequency Band | Low-High |
| High Frequency | 130-210 kHz |
| High Frequency Beamwidth | 10°-6° |
| Low Frequency | 42-65 kHz |
| Low Frequency Beamwidth | 25°-16° |
| Housing Material | Bronze |
| Max Deadrise | Up to 20° with fairing |
| Max Depth | Low frequency- 914 m (3000'), High frequency- 304 m (1000') |
| Mounting Style | Thru-Hull with Fairing |
| Power Rating | 1 kW |
| Single or Dual Frequency | CHIRP-Ready Dual-Band |
| Transducer Functions | Depth, Temperature |
| Usable Shaft Length | 121 mm (4.75"") |
What's in the Box:
- B265C-LH-MM Transduer
- High Speed Fairing Block
- High Speed Fairing Block Bolt Kit
- MMC-0 Cable
- Depth and fast-response water-temperature sensing
- 1 kW of power for great deep-water performance
- Low frequency: 42 to 65 kHz
- 25° to 16° beamwidth
- Maximum depth of 914 m (3000')
- High frequency: 130 to 210 kHz
- 10° to 6° beamwidth
- Maximum depth of 304 m (1000')
- 103 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
- Bronze housing with High-performance Fairing for optimal high-speed performance
- Also available as transom (TM265LH), pocket (PM265LH), cavity/welded-tank (CM265LH), and in-hull (M265LH) mounts
- Patented Xducer ID technology
SKU: NVN-1003108
MPN: B265C-LH-0
UPC:
Technical specifications
| Brand | Airmar |
| Model | Airmar B265C-LH Bronze TH Low/High CHIRP With Bare Wire Mix-N-Match |
| SKU / MFR# | 1003108 |
