Airmar TM185C Transducer High Wide CHIRP With Navico 7-Pin Blue
Airmar TM185C Transducer High Wide CHIRP With Navico 7-Pin Blue — Product description
1 kW
Get more coverage under your boat with Airmar's unique, wide-beam, high-frequency, Chirp-ready TM185HW. The high-frequency band operates across a range of 150 to 250 kHz and has a fixed 25° beam. The high-frequency band yields superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500').
Airmar TM185C Transducer
High Wide CHIRP With Navico 7-Pin Blue
Model: TM185-HW- Depth and fast-response water-temperature sensor
- 1 kW with a maximum depth of 152 m (500')
- High Frequency: 150 kHz to 250 kHz - Constant 25° beamwidth
- 100 kHz of total bandwidth from one transducer
- Covers popular fishing frequency 200 kHz plus everything else in the bandwidth
- High frequency band provides excellent shallow to mid-depth performance, bottom detail and fish target separation
- High wide beamwidth provides more coverage under the boat for detecting fish in the upper water column

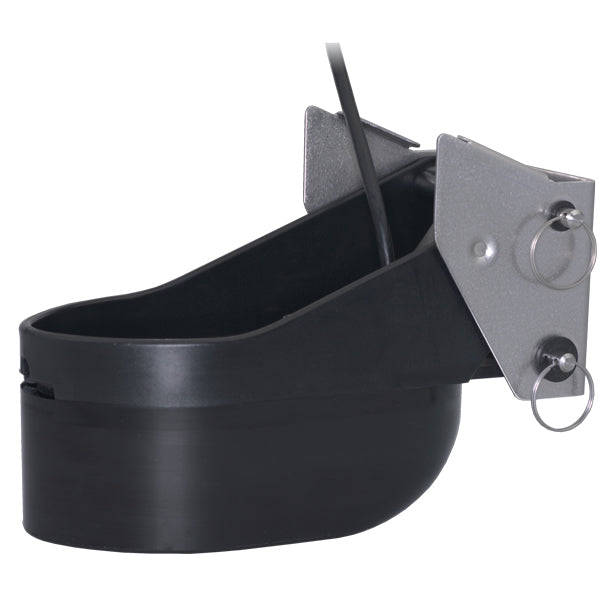

- Urethane transom transducer with a stainless steel bracket for installation on outboard and I/O powered boats
- Recommended boat size: Up to 10 m (32')
- Recommended for use on planing and displacement hulls in fiberglass or wood
- Also available in thru-hull (B175HW) and in-hull (M285HW) models
- Exclusive Xducer ID® technology
Get more coverage under your boat with Airmar’s unique wide beam, high frequency Chirp-ready transducers. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band results in superior resolution. The constant wide beamwidth provides twice the coverage under the boat and excellent fish arches on the display compared to most high frequency narrow beam transducer options
The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 500'.
Specifications| Weight | 4.16 kg (9.17 lb) |
| Accommodates Transom Angles | 3° to 21° |
| Acoustic Window | Urethane |
| Urethane transom transducer with a stainless steel bracket | |
| One internal broadband ceramic assembly | |
What's in the Box:
- TM185C-HW-MM
- MMC-BL
Airmar TM185C sensor with Navico 7-pin blue high and wide CHIRP model: TM185-HWDepth and fast response water temperature sensor 1 kW, maximum depth of 152 m (500') High frequency: 150 kHz to 250 kHz-...
- Depth and fast-response water-temperature sensing
- 1 kW of power
- High frequency: 150 to 250 kHz
- Constant 25° beamwidth
- Maximum depth of 152 m (500')
- 100 kHz of total bandwidth from one transducer
- Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
- Stainless steel bracket for installation on outboard or inboard/outboard powered boats
- Recommended for use on planing and displacement hulls
- SEALCAST, seamless, urethane housing for long life in the water
- Also available as thru-hull Tilted Element (B175HW)(SS175HW), thru-hull with fairing (B285HW), and in-hull (M285HW) mounts
- Patented Xducer ID technology
SKU: NVN-1000199
MPN: TM185C-HW-BL
UPC:
Technical specifications
| Brand | Airmar |
| Model | Airmar TM185C Transducer High Wide CHIRP With Navico 7-Pin Blue |
| SKU / MFR# | 1000199 |
