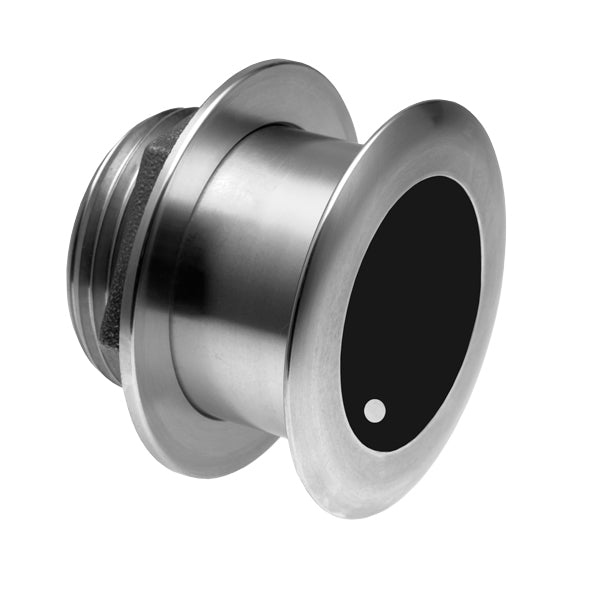

Airmar SS175C-12-H 12d Tilt High CHIRP With Mix-N-Match Plug

Airmar SS175C-12-H 12d Tilt

High CHIRP

Model: 41-843-1-01

• High—CHIRPS from 130 kHz to 210 kHz, 15° to 9° beamwidth
• Available in 0°, 12°, or 20° tilted versions
• 80 kHz of total bandwidth from one transducer
• Depth & fast-response water-temperature sensor
• Steel transducer housing
• Boat Size: Up to 11 m (36’)
• Hull Type: Steel or aluminum
• Exclusive Xducer ID® technology

Rely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.

This transducer is designed for smaller boats up to 36 feet (11 m).

A tilted element model in the Chirp Thru-Hull product line, the SS175H Chirps across the following bandwidth: H Model — High Frequency 130-210 kHz

Specifications

Hull deadrise	Up to 24°
Acoustic window	Urethane
Weight	2.7 kg (6 lb)

High CHIRP model: 41-843-1-01 high-CHIRPS from 130 k-Hz to 210 k-Hz, 15° to 9° beam width-available 0°, 12° or 20° tilt version 80 k-Hz total Bandwidth one...
SKU: NVN-1000167
MPN: 41-843-1-01
UPC:
