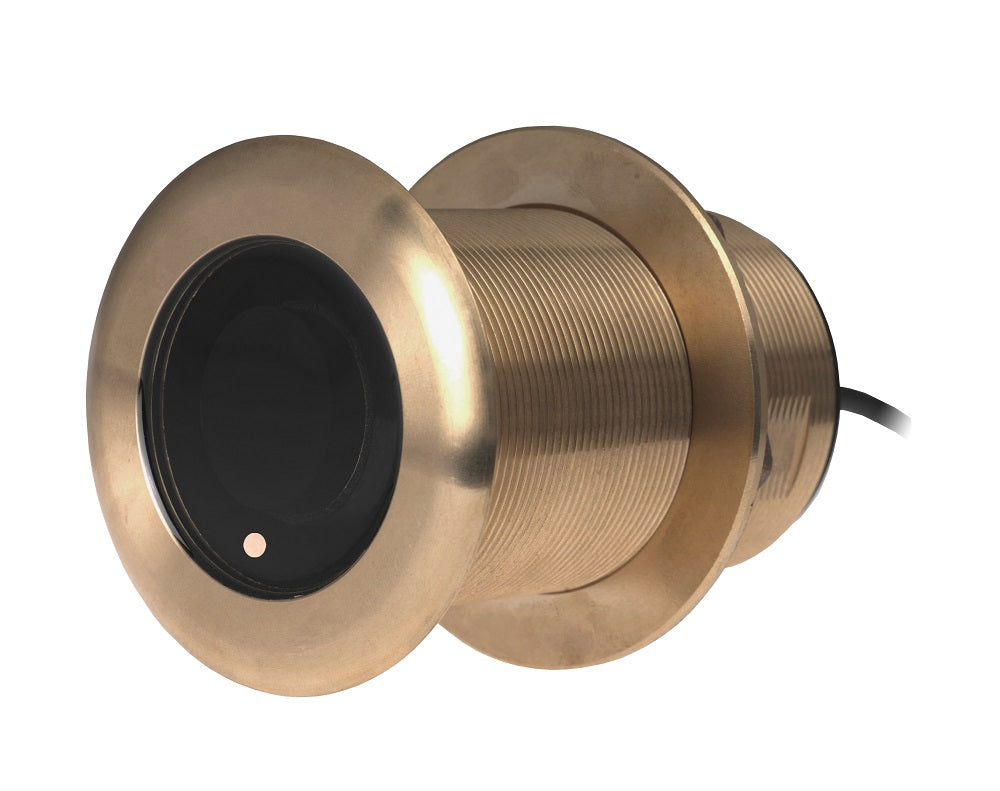

Airmar B75C-0-H 0d Tilt With Garmin 8-Pin MM Cab

600 W

Airmar's low-profile, Chirp-ready, transducers are the perfect addition to smaller boats such as center consoles. The high-frequency band of the B75H, operating between 130 and 210 kHz, has a narrow beamwidth—excellent for pinpointing fish holding tight to wrecks, reefs, and other structures. It also shows amazing target separation on baitfish and schooling gamefish. This transducer delivers up to 80 kHz of total bandwidth in just one installation for clear bottom detail and fish target resolution.

Tilted Element transducers have the ceramic element fixed at a 20°, 12°, or 0° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

The B75H is available in three Tilted Element models:

• Fixed 20° tilted version for 16 to 24° hull deadrise angles
• Fixed 12° tilted version for 6 to 15° hull deadrise angles
• Fixed 0° tilted version for 0 to 7° hull deadrise angles

Airmar B75C 0° tlted element High CHIRP Bronze Thru Hull with 8-Pin Garmin Mix-N-Match Cable

Model: B75C-0-H-8G

• Depth & fast-response water-temperature sensor
• 80 kHz of total bandwidth from one transducer
• Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
• Exclusive Xducer ID® technology

Rely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.

More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen

Specifications

CHIRP Frequency	130 kHz to 210 kHz
Beamwidth	15° to 9°
Element tilt	0°
Deadrise	0° to 7°
Maximum depth	700ft

What's in the Box:

• B75C-0-H-MM
• MMC-8G

Airmar B75C 0° filter element, high CHIRP bronze straight-through hull, with 8-pin Garmin hybrid N-type matching cable Model: B75C-0-H-8G depth and fast response water temperature sensor, total frequency 80 kHz, with backlight

• Depth and fast-response water-temperature sensing
• 600 W of power with a maximum depth of 214 m (700')
• High frequency: 130 to 210 kHz
• 15° to 9° beamwidth
• High frequency delivers great shallow-water performance, bottom detail, and clear fish-target returns
• Low-profile, thru-hull housing provides good display resolution at speed when installed properly
• Recommended for stepped, planing, or displacement hull
• Bronze housing for use in a fiberglass or wood hull
• Also available in a stainless steel housing (SS75H) for use with all hull materials
• Patented Xducer ID technology

SKU: NVN-1000104
MPN: B75C-0-H-8G
UPC:
