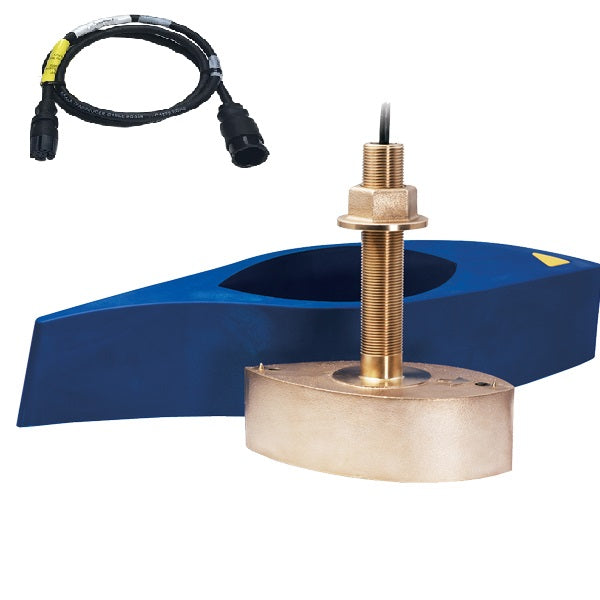

Airmar B275C-LHW Transducer With 11-Pin Raymarine MMC

Get more coverage under your boat with Airmar's unique wide-beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam transducer options.

The included high-performance fairing improves broadband results at speeds over 30 knots (34 MPH).

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500').

The low-frequency band and 1 kW of power also support great deep-water performance. Get the best of both worlds with Airmar's dual-frequency, Chirp-ready transducers with wide-beam coverage.

Airmar B275C-LHW Wide Beam CHIRP Bronze Thru-Hull Transducer with Raymarine 11-Pin Low/Dual Beam Mix-n-Match Cable

Model: B275C-LHW-11R

• Depth & fast-response water-temperature sensor
• 123 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth

Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers.

A unique property of the new high frequency transducers is that the beam width is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.

Specifications

Low Frequency	CHIRPS from 42 kHz to 65 kHz ?25° to 16° beamwidth
High Frequency	CHIRPS from 150 kHz to 250 kHz ?25° constant beamwidth
Boat size	8 m (25’) and above
Hull type	Fiberglass or wood
Hull deadrise	Up to 20° with fairing block
Acoustic window	Urethane

What's in the Box:

• B275CLHW-MM
• Fairing block and hardware
• MMC-11R-LDB - Raymarine 11 pin M&M Chirp Cable - Low and Dual-Band

Airmar B275C-LHW wide beam CHIRP bronze straight-through hull sensor with Raymarine 11-pin near/dual beam hybrid n matching cable Model: B275C-LHW-11R depth and fast response water temperature sensor, total bandwidth 123 kHz. .

• Depth and fast-response water-temperature sensor
• 1 kW for great deep-water performance from the low frequency
• Low frequency: 42 to 65 kHz
  • 25° to 16° beamwidth
  • Maximum depth of 914 m (3,000')
• High frequency: 150 to 250 kHz
  • 25° constant beamwidth
  • Maximum depth of 152 m (500')
• 123 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
• High wide beamwidth yields more coverage for detecting fish in the upper-water column
• Bronze housing with high-performance fairing for optimal performance at higher speeds
• Also available as transom (TM275LHW) and pocket/keel (PM275LHW) mounts
• Includes High-performance fairing and mounting hardware
• Exclusive Xducer ID technology

SKU: NVN-1000080
MPN: B275C-LHW-11R
