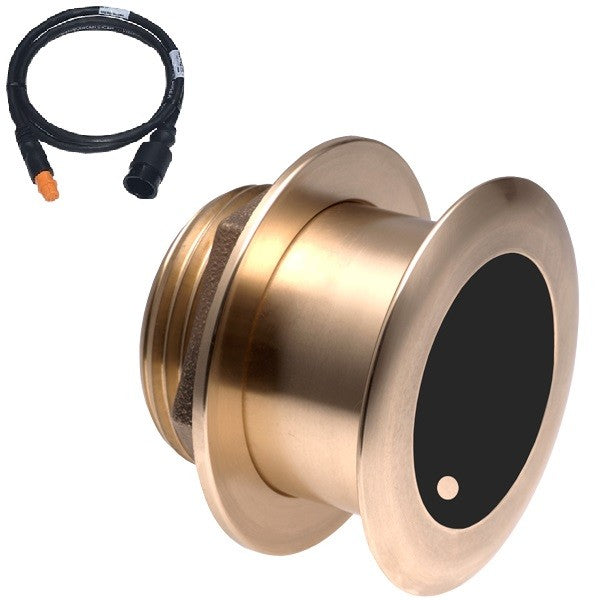

Airmar B175C-20-M 20d Tilt With Garmin 12-Pin MM Cable

1 kW

The B175M's medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Medium frequency also provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths of up to 457 m (1500') and gives ultra-clear target resolution.

Airmar's Tilted Element transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.

The B175M is available in three Tilted Element models:

• Fixed 20° tilted version for 16 to 24° hull deadrise angles
• Fixed 12° tilted version for 8 to 15° hull deadrise angles
• Fixed 0° tilted version for 0 to 7° hull deadrise angles

Airmar B175 Chirp Medium Frequency 20d Tilted Element with Garmin 12-Pin Mix-N-Match Cable

Model: B175C-20-M-12G

• Depth & fast-response water-temperature sensor
• Medium—CHIRPS from 85 kHz to 135 kHz
• 24° to 16° beamwidth
• 50 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
• Hull Type: Fiberglass or wood
• Boat Size: 8 m (25’) and above

Rely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.

Specifications

Deadrise	16° to 24°
Acoustic Window	Urethane
Power rating	1 kW @ 1% duty cycle
Frequency	85-135 kHz

What's in the Box:

• B175C-20-MM
• MMC-12G

Airmar B175 chirp IF 20d tilt element with Garmin 12-pin hybrid N-type matching cable Model: B175C-20-M-12G depth and fast response water temperature sensor -CHIRPS from 85 kHz to 135 kHz to 24° to 16° beam width 50 kHz of all...

• Depth and fast-response water-temperature sensing
• 1 kW of power
• Medium frequency: 85 to 135 kHz
• 16° to 11° beamwidth
• Maximum depth of 457 m (1500')
• 50 kHz of total bandwidth from one transducer
• Low-profile, thru-hull housing provides good display resolution at speed when installed properly
• Recommended for stepped, planing, or displacement hull
• Bronze housing for use in a fiberglass or wood hull
• Also available in a stainless steel housing (SS175M) and a thru-hull (B285M) or in-hull (M135M) mount
• Patented Xducer ID technology

SKU: NVN-1000071
MPN: B175C-20-M-12G
UPC:
