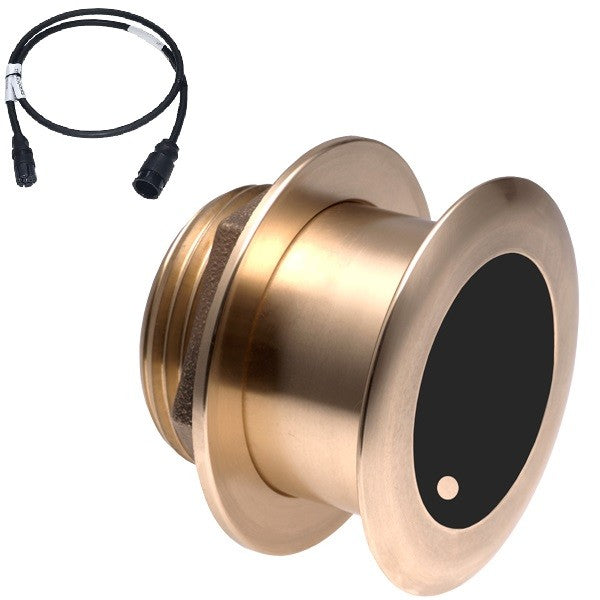

Airmar B175C-12-HW 12d Tilt With Raymarine 11-Pin MM Cable

Get more coverage under your boat with Airmar's unique wide beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam transducer options.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500').

Tilted Element transducers have the element fixed at either a 20°, 12° or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise and orients the ceramic element horizontally to ensure maximum echo returns to the transducer.

The B175HW is available in three Tilted Element models:

• Fixed 20° tilted version for 16° to 24° hull deadrise
• Fixed 12° tilted version for 8° to 15° hull deadrise
• Fixed 0° tilted version for 0° to 7° hull deadrise

Airmar B175 Wide-Beam Chirp High Frequency 12d Tilted Element W, Raymarine 11-Pin Mix-N-Match Cable

Model: B175C-12-HW-11R

• Depth & fast-response water-temperature sensor
• High—CHIRPS from 150 kHz to 250 kHz
• 25° constant beamwidth
• 100 kHz of total bandwidth from one transducer
• Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
• Hull Type: Fiberglass or wood
• Boat Size: 8 m (25’) and above

Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers

A unique property of the new high frequency transducers is that the beam width is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.

Additional cables required, A80328 when used as single or A102146 when used as pair.

Specifications

Deadrise	8° to 15°
Acoustic Window	Urethane
Power rating	1 kW @ 1% duty cycle
Frequency	150 to 250 kHz-A (Broadband)

With Airmar's new wide-beam CHIRP product series, greater coverage under the ship. These... provide a high frequency range of 150-250kHz and a constant beam width of 25 degrees, these...

• Depth and fast-response water-temperature sensor
• 1 kW with a maximum depth of 152 m (500')
• High frequency: 150 to 250 kHz
  • Constant 25° beam
• 100 kHz of total bandwidth from one transducer
• Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
• High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
• High wide beamwidth yields more coverage for detecting fish in the upper-water column
• Low-profile, thru-hull housing provides good resolution at speed when installed properly
• Bronze housing for use on stepped, planing or displacement hull
• Also available in a stainless steel housing (SS175HW) and as a transom (TM185HW), or in-hull (M285HW) mount
• Exclusive Xducer ID technology
