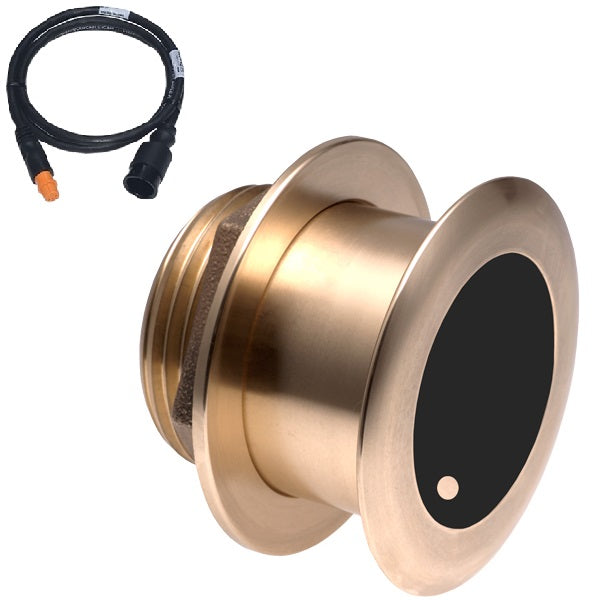

Airmar B175C-12-H Thru Hull With 12-Pin Garmin MM Cable

1 kW

Airmar's low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. The high-frequency band delivers a narrow beamwidth—excellent for pinpointing fish holding tight to wrecks, reefs, and other structures. High frequency also shows amazing target separation on baitfish and schooling gamefish. Transmitting across 130 to 210 kHz, the B175H has up to 80 kHz of total bandwidth in just one installation for superior shallow-water performance and bottom detail.

Tilted Element transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.

The B175H is available in three Tilted Element models:

• Fixed 20° tilted version for 16 to 24° hull deadrise angles
• Fixed 12° tilted version for 8 to 15° hull deadrise angles
• Fixed 0° tilted version for 0 to 7° hull deadrise angles

Airmar B175C High Frequency CHIRP Transducer with 12d Tilted Element and Garmin 12 pin M&M Chirp Cable - 1m

Model: B175-C-12-H-12G

• High—CHIRPS from 130 kHz to 210 kHz, 15° to 9° beamwidth
• 80 kHz of total bandwidth from one transducer
• Hull Type: Fiberglass or wood
• Depth & fast-response water-temperature sensor
• Bronze transducer housing
• Boat Size: Up to 11 m (36’)

Rely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.

Thjis transducer terminates with Airmars Mix and Max connector, you can cut it off to connect to a sounder that does not require a connector.

Specifications

Hull Deadrise	8° to 15°
Acoustic window	Urethane
Boat size	Up to 11 m (36’)
Hull type	Fiberglass or wood
Frequency	130-210 kHz

What's in the Box:

• B175 High Frequency Transducer
• Garmin 12 pin M&M Chirp Cable - 1m

Airmar B175C high frequency CHIRP sensor with 12d tilt element and Garmin 12-pin M&M chirp cable-1m model: B175-C-12-H-12G high frequency-CHIRPS from 130 kHz to 210 kHz,...

• Depth and fast-response water-temperature sensing
• 1 kW of power with a maximum depth of 304 m (1000')
• High frequency: 130 to 210 kHz
• 10° to 6° beamwidth
• 80 kHz of total bandwidth from one transducer
• High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
• Low-profile, thru-hull housing yields good display resolution at speed when installed properly
• Recommended for stepped, planing, or displacement hull
• Bronze housing for use in a fiberglass or wood hull
• Also available in a stainless steel housing (SS175H) for use in all hull materials
• Patented Xducer ID technology

SKU: NVN-1000025
MPN: B175C-12-H-12G
