Aigean LD-70 Self Contained Dual Band Marine Wi-Fi Receiver

Aigean Networks LD-70 All-In-One WiFi ExtenderDual Band, Low Profile, with Single Cable InstallationThe Aigean LD-70 is an all-in-one wireless client contained in a single 7" diameter dome that secures directly to any standard 1"-14 marine antenna mount.The LD-70 features complete dual band (2.4 and 5 GHz) connectivity, with MIMO (multi-in, multi-out) capability, across an array of four internal antennas. As with all Aigean wireless clients, the LD-70 significantly improves signal strength and quality versus traditional mobile devices (laptops, phones, tablets, etc.) when connecting to shore-based networks, such as those at marinas, hotels, homes, and businesses.Ideal for smaller vessels or vessels with tricky installation restrictions that require a low-profile, single-cable solution.The LD-70 also works seamlessly with Aigean on board Marine Access Points.Installation is fast and easy. No CD or software installation is required. Simply mount, plug in, and power on. The interface is web-based - any device with a modern web browser will work!2.4 GHz and 5 GHz support. Significantly increase connection opportunities and speed by utilizing 5 GHz networks when available.With a marine-grade fiberglass dome and an anodized aluminum base, the LD-70 is completely safe when exposed to the elements.

Aigean Networks LD70 Attributes

Dual Band All-In-One Wireless Client Multi-In/Multi-Out Capability

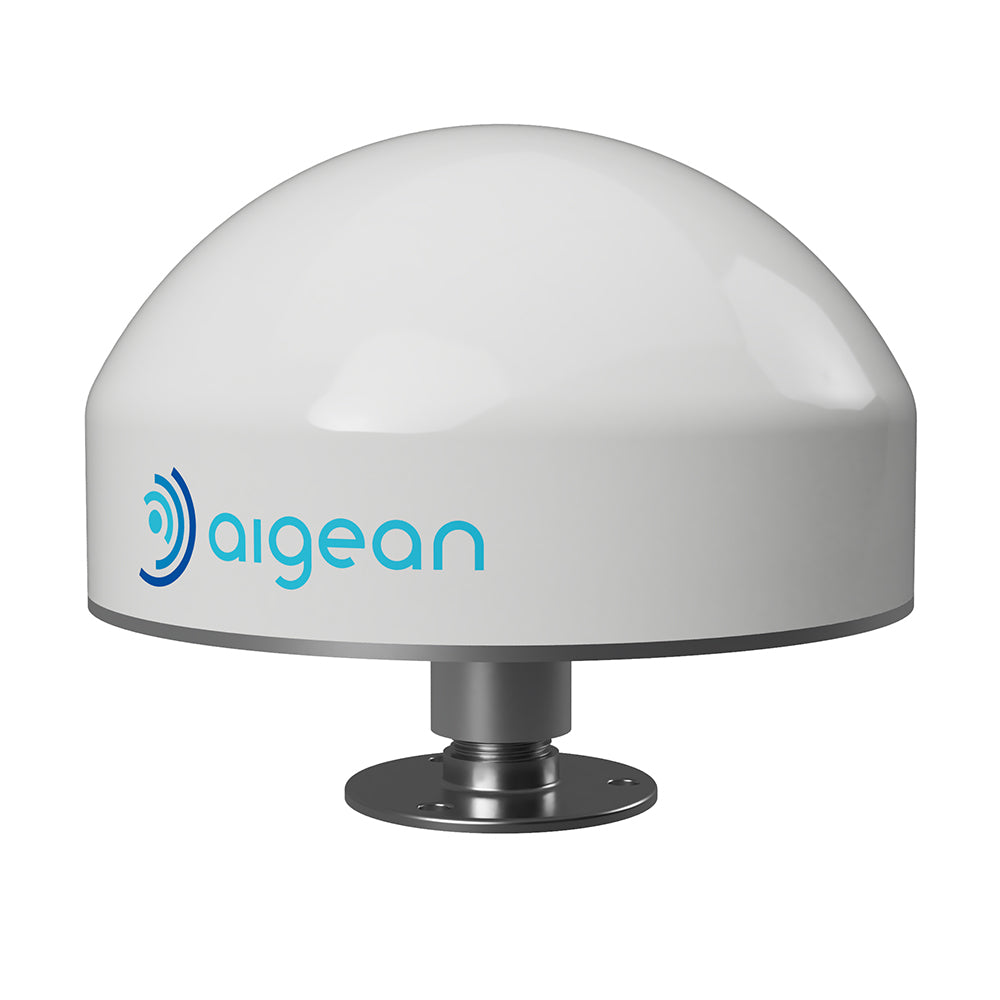

The Aigean LD-70 is a all-in-one wireless client contained in a single 7” diameter dome that secures directly to any standard 1"-14 marine antenna mount.

The LD-70 features complete dual band (2.4 and 5 GHz) connectivity, with MIMO (multi-in, multi-out) capability, across an array of four internal antennas. As with all Aigean wireless clients, the LD-70 significantly improves signal strength and quality versus traditional mobile devices (laptops, phones, tablets, etc.) when connecting to shore-based networks, such as those at marinas, hotels, homes, and businesses.

Ideal for smaller vessels or vessels with tricky installation restrictions that require a low-profile, single-cable solution.

The LD-70 also works seamlessly with our on board Marine Access Points.

Easy Setup

Installation is fast and easy. No CD or software installation is required. Simply mount, plug in, and power on. The interface is web-based - any device with a modern web browser will work!

Dual Band Technology

2.4 GHz and 5 GHz support. Significantly increase connection opportunities and speed by utilizing 5 GHz networks when available.

Weatherproof Enclosure

With a marine-grade fiberglass dome and an annodized aluminum base, the LD-70 is completely safe when exposed to the elements.

Aigean Wi-Fi Clients are used as the primary connection interface for communicating with external wireless networks. Our wireless clients are designed to improve signal strength and quality when connecting to marina, hotel, home, and business networks.

Interface

All of our wireless clients come standard with an extremely simple and elegant interface that makes it easy to connect and stay connected.

We understand that not every user is alike. While we have greatly simplified the networking capabilities and the interface that surrounds them, we do have advanced features for those who require them. Simply toggle the advanced setting, hit apply and have instant access to items like LAN, DHCP and Firewall settings. Yes, we have even included port forwarding and static lease support across your network.

The interface provides the user with granular control over all automatic behaviors so that your experience is finely tuned to your needs, unlike any other comparable products in the industry.

Package Contents:

• LD-70 Dome (with 25’ Ethernet pigtail)
• AC to Power over Ethernet (PoE) injector*
• Quick Start Guide
• Warranty Information

*The LD-70 is ONLY 802.3at compliant

Compatibility:

Modern Web Browsers:

• Chrome, Safari, Firefox, Opera, Microsoft Internet Explorer 10 and newer, Microsoft Edge

802.11bgn Wi-Fi networks:

• Unsecured (Open)
• Standard Encryption (WEP, WPA, WPA2)
• Hidden Networks (masked SSID)

"Map2 Marine Access Point Single-band access point for onboard connectivity. Additional Ap's may be required to ensure full vessel coverage. Works with Link, An-2 Series, ad the An-7000. Quickly and easily connect to your existing network to add or expand wireless coverage. When paired with an Aigean Networks Wi-Fi Client or Router, you can manage any connected access points directly through their interfaces."
SKU: NVN-79896
MPN: LD-70
UPC: 860006788704
